Product Details
Industrial Lenses, Telecentric Lens Series
Eliminates parallax error and keeps magnification constant within working distance range. Features: high resolution, large depth of field, ultra-low distortion, parallel light path. Applications: precision dimension measurement, identification & positioning, semiconductor inspection.
Overview
Product Overview
Industrial Lenses, Telecentric Lens Series

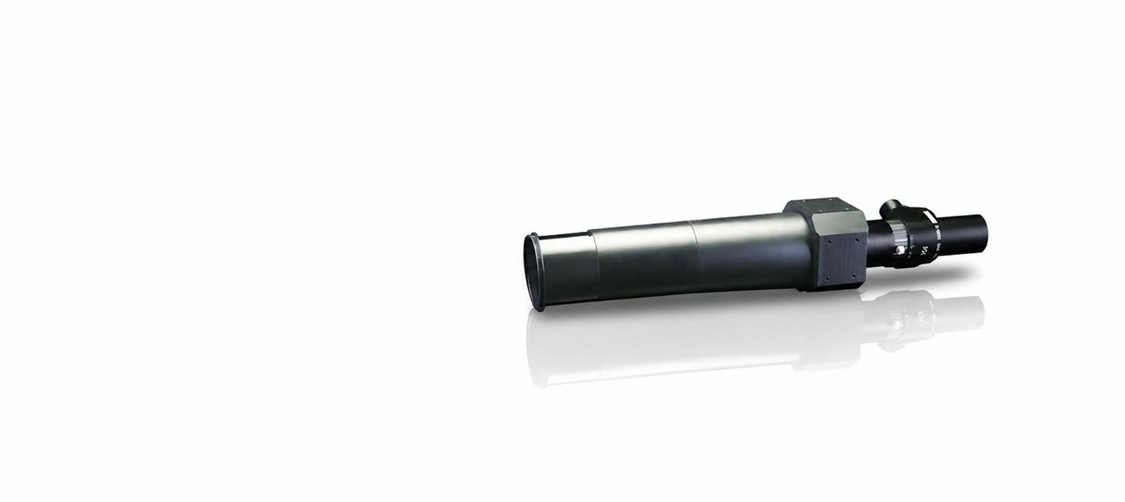

65mm 2/3" Standard Telecentric Lens
- Standard Working Distance: 65mm
- Standard Magnification: 0.2x-6x
- High resolution, supports 5MP 2/3" cameras
- High telecentricity, ultra-low distortion, excellent cost-performance ratio
- Available in coaxial and non-coaxial versions Object-side telecentric design
110mm 2/3" Standard Telecentric Lens
- Standard Working Distance: 110mm
- Standard Magnification: 0.2x-6x
- High resolution, supports 5MP 2/3" cameras
- High telecentricity, ultra-low distortion, excellent cost-performance ratio
- Available in coaxial and non-coaxial versions
- Object-side telecentric design
65mm 1.1" Standard Telecentric Lens
- Standard Working Distance: 65mm
- Standard Magnification: 0.75x-4x
- High telecentricity, ultra-low distortion, excellent cost-performance ratio
- High resolution, supports 12MP 1.1" cameras
- Object-side telecentric design
- Specifically designed to identify features of ICs, glass, LCD panels, etc.
- To facilitate automated high-speed operations
110mm 1.1" Standard Telecentric Lens
- Standard Working Distance: 110mm
- Standard Magnification: 0.3x-4x
- High telecentricity, ultra-low distortion, excellent cost-performance ratio
- High resolution, supports 12MP 1.1" cameras
- Object-side telecentric design
- Specifically designed to identify features of ICs, glass, LCD panels, etc.
- To facilitate automated high-speed operations
65 MP Telecentric Lens
- Supports 29MP to 65MP sensors
- Maximum image circle up to Φ44mm, compatible with 3.2μm pixel pitch
- Excellent RGB chromatic aberration correction
- Adjustable aperture, large depth of field
- Specifically developed for high-precision semiconductor inspection applications

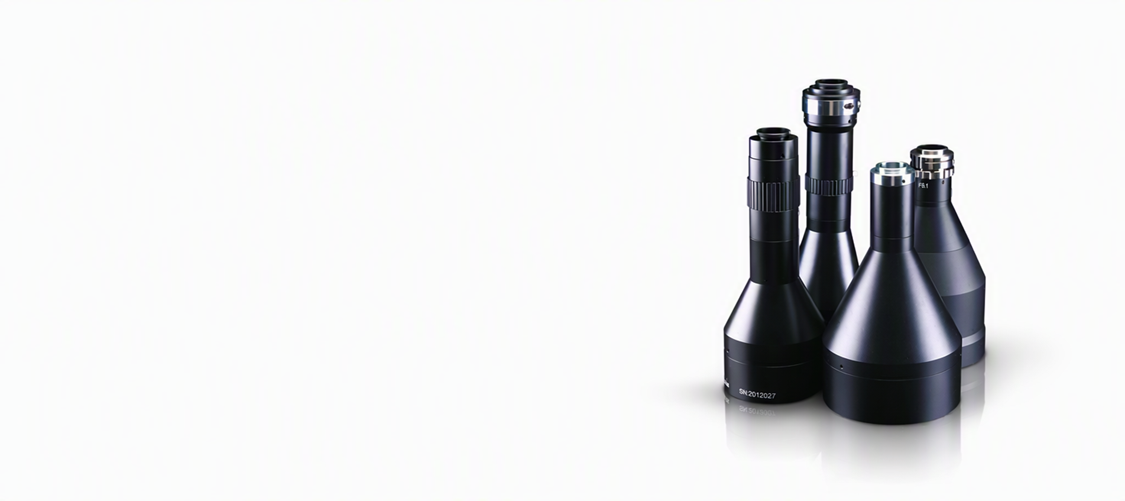

Non-Standard Telecentric Lens
- Supports 1/1.8" to APS-C format sensors
- High telecentricity, high resolution, low distortion design
- Magnification range: 0.1x-0.75x
- Adjustable aperture, large depth of field design
- Excellent optical performance
Applications
Lithium Battery | 3C Electronics | Semiconductors | Display Panels
Positioning | Measurement
Downloads
Catalog Download
Download complete product documentation to understand the technical details and application solutions of Industrial Lenses, Telecentric Lens Series
Lens-Telecentric Specification
Need more technical support?
Our technical team is always ready to provide product consulting, solution design, on‑site demonstrations, and after‑sales support
